详细说明：
SJT SJTW
电源线
Power Cord
标准 Standard: UL 62, 1581 CSA C22.2 No.49
注册号：Registration No:E466663

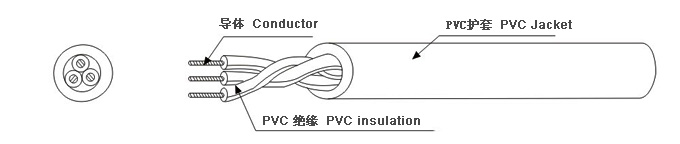

■ 构造 CONSTITUTION：
■ 印字MSTKING
(UL) E466663 SJT ( ) AWG×() 105℃ 300V VW-1---C(UL)SJT ( )AWG×() 105℃ 300V FT1
■ 产品说明
●额定电压：300V， 额定温度：105℃
●导体使用单根或绞线裸铜
●PVC绝缘
● PVC护套
●可通过UL VW-1及 CSA FT1垂直耐燃试验
● 使用标准厚度、易剥、易裁
● 具有耐碱、耐油、防潮、防霉、环保等特性
■ 应用
一般电源线
PRODUCT DESCRIPTION
●Rated voltage: 300V，Rated temperature:105℃
●Bare,stranded or solid copper conductor
●PVC insulation.
● PVC Jacket
●Passes UL VW-1 & CSA FT1 vertical flame test
● Uniform insulation thickness of wire to ensure easy stripping and cutting
● Resistant to acid,oil,alkal,moisture and fungi,conforming RoSH
APPLICATION
General purpose power supply cord
SJT SJTW 105℃ 300V
注：①SJT、SJTW 所额定温度也可为60℃、75℃、90℃ ②SJTW 适用于户外
|
型号 Style |
导体 Conductor |
绝缘 Insulation |
护套 Jacket |
20℃最大 |
最小绝缘电阻 Mai Insulation Resistance at 20℃ |
耐电压 Dielec- tric Strength AC 1 min |
标准长度 Standard Length |
||||
|
线规 Spec |
线数/线径 | 直径 Dia |
标称厚度 Nom. Thick. |
标称外径 Dia. |
标称厚度 Nom. Thick. |
标称外径 Dia. |
|||||
| AWG | No./mm | mm | mm | mm | mm | mm | Ω/Km | MΩ.Km | V | Ft(M) | |
|
SJT SJTW |
18-2c | 41/0.16 | 1.18 | 0.76 | 2.7 | 0.76 | 7.1 | 21.8 | 15 | 1500 | 656(200) |
|
18-3c |
7.5 | ||||||||||
|
18-4c |
8.2 | ||||||||||
| 18-5c | 9 | ||||||||||
|
16-2c |
26/0.254 | 1.49 | 0.76 | 3.0 | 0.76 | 7.6 | 13.7 | ||||
|
16-3c |
8.1 | ||||||||||
| 16-4c | 8.9 | 328(100) | |||||||||
|
16-5c |
9.7 | ||||||||||
|
14-2c |
41/0.254 | 1.88 | 0.76 | 3.45 | 0.76 | 8.5 | 8.62 | 656(200) | |||
|
14-3c |
41/0.254 |
1.88 |
0.76 | 3.45 | 0.76 | 9.0 | 8.62 | 328(100) | |||
| 14-4c | 9.9 | ||||||||||
|
14-5c |
10.9 | ||||||||||
|
12-2c |
65/0.254 | 2.37 | 0.76 | 4.0 | 1.14 | 10.3 | 5.43 | ||||
|
12-3c |
10.9 | ||||||||||
| 12-4c | 11.9 | ||||||||||
|
12-5c |
13.1 | ||||||||||
|
10-2c |
49/0.37 |
3.38 |
1.14 |
5.7 |
1.52 |
14.5 |
3.41 |
||||
|
10-3c |
15.3 | 164(50) | |||||||||
| 10-4c | 16.8 | ||||||||||
|
10-5c |
18.4 |
||||||||||
