详细说明：
SPT
电源线
Power Cord
标准 Standard: UL 62, 1581 CSA C22.2 No.49
注册号：Registration No:E466663

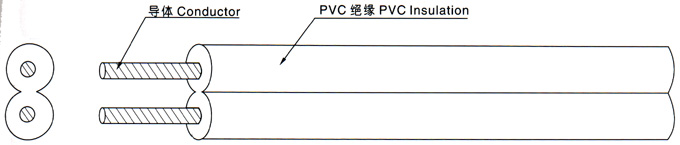

■ 构造 CONSTITUTION：
■ 印字MSTKING
(UL) E466663 SPT-3 ( ) AWG×2C 105℃ 300V VW-1---C(UL)SPT-3 ( )AWG×2C 105℃ 300V FT1 GIFIV LF
■ 产品说明
●额定电压：300V， 额定温度：150℃
●导体使用单根或绞线裸铜
●PVC绝缘
●可通过UL VW-1及 CSA FT1垂直耐燃试验
● 使用标准厚度、易剥、易裁
● 具有耐碱、耐油、防潮、防霉、环保等特性
■ 应用
一般电源线
PRODUCT DESCRIPTION
●Rated voltage: 300V，Rated temperature:150℃
●Bare,stranded or solid copper conductor
●PVC insulation.
●Passes UL VW-1 & CSA FT1 vertical flame test
● Uniform insulation thickness of wire to ensure easy stripping and cutting
● For general purpose internal wiring of electronic and electrical equipment.
APPLICATION
General purpose power supply cord
SPT-3 105℃ 300V
|
型号 Style |
导体 Conductor |
芯数 Cores |
绝缘 Insulation |
20℃最大 |
最小绝缘电阻 Max Insulation Resistance at 20℃ |
耐电压 Dielec- tric Strength AC 1 min |
标准长度 Standard Length |
|||
|
线规Spec |
线数/线径 | 直径 Dia |
标称厚度 Nom. Thick. |
标称外径 Dia. |
||||||
| AWG | No./mm | mm | No. | mm | mm | Ω/Km | MΩ.Km | V | Ft(M) | |
|
SPT-1 SPT-1W |
18 | 41/0.16 | 1.18 | 2 | 1.52 | 4.30×8.60 | 21.8 | 15 | 1500 | 1000(305) |
|
18 |
26/0.254 |
1.49 |
2 |
1.52 |
4.6×9.2 |
13.7 |
1000(305) | |||
|
14 |
41/0.254 |
1.88 |
2 |
2.03 |
6.0×12.0 |
8.62 |
496(152) | |||
| 12 | 65/0.254 | 2.37 | 2 | 2.41 | 7.2×14.4 | 5.43 | ||||
|
10 |
49/0.37 |
3.38 |
2 |
2.79 |
9.0×18.0 |
3.41 |
||||
