详细说明：
SVT(无屏蔽）
电源线
Power Cord
标准 Standard: UL 62, 1581 CSA C22.2 No.49
注册号 Registration No:E466663

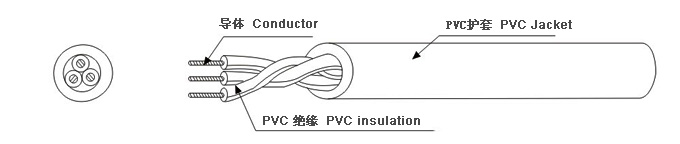

■ 构造 CONSTITUTION：
■ 产品说明
●额定电压：300V， 额定温度：105℃
●导体使用单线或绞线裸铜丝
●PVC绝缘
●PVC护套
●可通过UL VW-1及 CSA FT1垂直耐燃试验
■ 应用
一般电源线
PRODUCT DESCRIPTION
●Rated voltage: 300V，Rated temperature:105℃
●Bare, stranded or solid copper conductor
●Color-coded PVC insulation
●PVC jacket
●Passes UL VW-1 & CSA FT1 vertical flame test
APPLICATION
General purpose power supply cord
|
型号 Style |
导体 Conductor |
芯数Cores |
绝缘 Insulation |
护套 Jacket |
最大导体电阻 Max Resis- tance at 20℃ |
最小绝缘电阻 Max Insulation Resis- tance at 20℃ |
耐电压 Dielec- tric Strength AC 1 min |
标准长度Standard Length | ||||
|
线规 Spec |
线数/线径 | 直径 Dia |
标称厚度 Nom. Thick. |
标称外径 Nom. Dia. |
标称厚度 Nom. Thick. |
标称外径 Nom. Dia. |
||||||
| AWG | No./mm | mm | No. | mm | mm | mm | mm | Ω/Km | MΩ.Km | V | M | |
| SVT |
18 |
41/0.16 |
1.18 |
2 |
0.38 |
2.0 |
0.76 |
5.9 |
21.8 |
15 |
1500 |
656(200) |
|
3 |
5.6 |
|||||||||||
|
16 |
26/0.254 |
1.49 |
2 |
2.35 |
6.3 |
13.7 |
||||||
|
3 |
2.35 |
6.7 |
13.7 |
|||||||||
