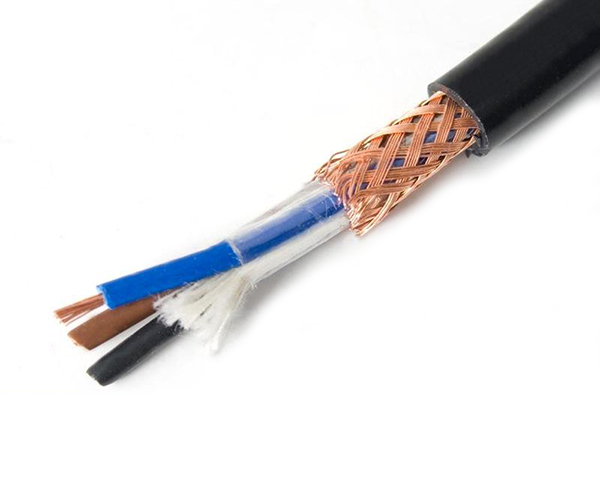

RVVP、RVVP1
多芯屏蔽电缆
Multi-Conductor Shielded Cable
标准 Standard: JB 8734.5-1998
注册号 Registration No:E466663
■ 构造 CONSTITUTION：
■ 印字 MARKING
CCC SHANGHAI GIFIV LTD RVVP1 300/300V
■ 产品说明
额定电压：300/300V， 额定温度：70℃
导体使用绞线0.08-1.5mm2裸铜丝
PVC绝缘
镀锡或裸软铜线缠绕或编织屏蔽
PVC护套
可通过GB 12666.2垂直耐燃试验
使用标准厚度、易剥、易裁
具有抗酸碱、耐油、防潮、防霉、环保等特性
■ 应用
适用于电器、仪表和电子设备及自动化装置用连线
PRODUCT DESCRIPTION
Rated voltage: 00/300V，Rated temperature:70℃
Stranded, bare copper conductor,0.08-1.5mm2
PVC insulation
Tinned or bare copper wire sporal or braid shield
PVC jacket
Passes GB 12666.2 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid,alkail,oil,moisture and fungi,conform RoHS
APPLICATION
For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition
RVVP、RVVP1 70℃ 300/300V
|
RVVP、RVVP1 70℃ 300/300V |
||||||||||||||
|
型号 Style |
异体 Conductor |
芯数Cores |
绝缘 Insulation |
屏蔽Shield | 护套 Jacket |
最大异体电阻 Max Resis- tance at 20℃ |
最小绝缘电阻 Max Insul- ation Resis- tance at 70℃ |
耐电压 Dielec- tric Strength AC 5 min |
标准长度Standard Length | |||||
|
标准截面 Nom. Area |
线数/线径 | 直径 Dia |
标称厚度 Nom. Thick |
标称外径 Nom. Dia. |
缠绕/编织 Spiral/ Braid |
标称厚度 Nom. Thick. |
标称外径 Nom. Dia. |
最大外径 Max. Dia | ||||||
| mm2 | No./mm | mm | No. | mm | mm | mm | mm | mm | mm | Ω/Km | MΩ.Km | V | (M) | |
| RVVP1 | 0.08 | 7/0.12 | 0.37 | 1 | 0.4 | 1.17 | 0.10 | 0.4 | 2.20 | 2.5 | 247.0 | 0.018 | 1500 | 500 |
| 2 | 0.10 | 3.40 | 4.2 | |||||||||||
| 0.12 | 7/0.15 | 0.46 | 1 | 0.4 | 1.26 | 0.10 | 0.4 | 2.30 | 2.6 | 158.0 | 0.016 | 1500 | ||
| 2 | 0.10 | 0.6 | 4.00 | 4.9 | 300 | |||||||||
| 3 | 0.10 | 4.10 | 5.1 | |||||||||||
| 4 | 0.15 | 4.60 | 5.8 | |||||||||||
| 5 | 0.15 | 5.00 | 6.2 | |||||||||||
| 0.2 | 12/0.15 | 060 | 1 | 0.4 | 1.40 | 0.10 | 0.4 | 2.40 | 2.8 | 92.3 | 0.016 | 1500 | 500 | |
| 2 | 0.10 | 0.6 | 4.20 | 5.3 | 300 | |||||||||
| 3 | 0.15 | 4.60 | 5.8 | |||||||||||
| 4 | 0.15 | 4.90 | 6.2 | |||||||||||
| 5 | 0.15 | 5.30 | 6.7 | |||||||||||
| 0.3 | 16/0.15 | 0.69 | 1 | 0.5 | 1.69 | 0.10 | 0.4 | 2.70 | 3.1 | 69.2 | 0.014 | 1500 | 500 | |
| 2 | 0.15 | 0.6 | 4.90 | 6.2 | 300 | |||||||||
| 3 | 0.15 | 5.20 | 6.5 | |||||||||||
| 4 | 0.15 | 5.60 | 7.0 | 200 | ||||||||||
| 5 | 0.15 | 6.10 | 7.6 | |||||||||||
| RVVP | 0.08 | 7/0.12 | 0.37 | 1 | 0.4 | 1.17 | 16/3/0.10 | 0.4 | 2.40 | 2.9 | 247.0 | 0.018 | 1500 | 500 |
| 2 | 16/4/0.10 | 3.60 | 4.2 | 300 | ||||||||||
| 16/4/0.10 | 2.4×3.6 | 2.9×4.2 | ||||||||||||
| 0.12 | 7/0.15 | 0.46 | 1 | 0.4 | 1.26 | 16/3/0.10 | 0.6 | 2.50 | 3.0 | 158.0 | 0.016 | 1500 | 500 | |
| 2 | 16/4/0.10 | 4.20 | 4.9 | 300 | ||||||||||
| 16/4/0.10 | 2.9×4.2 | 3.4×4.9 | ||||||||||||
| 3 | 16/4/0.10 | 4.40 | 5.1 | |||||||||||
| 4 | 16/4/0.15 | 4.90 | 5.8 | |||||||||||
| 5 | 16/4/0.15 | 5.30 | 6.2 | |||||||||||
| 6-7 | 16/4/0.15 | 5.60 | 6.6 | 200 | ||||||||||
| 10 | 16/5/0.15 | 6.90 | 8.1 | |||||||||||
| 12 | 16/6/0.15 | 7.10 | 8.3 | |||||||||||
| 0.2 | 12/0.15 | 0.60 | 1 | 0.4 | 1.40 | 16/4/0.10 | 0.4 | 2.60 | 3.2 | 92.3 | 0.013 | 1500 | 500 | |
| 2 | 16/4/0.10 | 0.6 | 4.40 | 5.3 | 300 | |||||||||
| 16/4/0.10 | 3.0×4.4 | 3.6×5.3 | ||||||||||||
| 3 | 16/4/0.15 | 4.90 | 5.8 | |||||||||||
| 4 | 16/4/0.15 | 5.20 | 6.2 | |||||||||||
| 5 | 16/4/0.15 | 5.60 | 6.7 | 200 | ||||||||||
| 6-7 | 16/4/0.15 | 6.00 | 7.2 | |||||||||||
| 10 | 16/4/0.15 | 0.8 | 7.80 | 9.3 | ||||||||||
| 12 | 16/4/0.15 | 8.10 | 9.6 | 150 | ||||||||||
